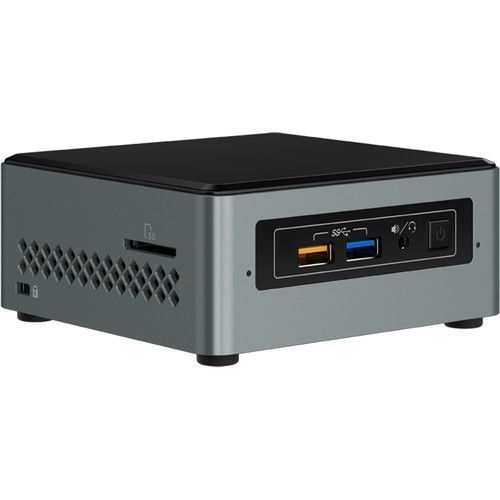

Build a mini-sized PC system with the Intel NUC6CAYH Mini PC NUC Kit, which comes preinstalled with an Intel Celeron J3455 processor and supports up to 8GB of DDR3L memory as well as a 2.5" hard drive or SSD. The Intel Celeron J3455 processor sports four cores that operate at a stock speed of 1.5 GHz and can achieve speeds of up to 2.3 GHz while running demanding apps. The 2.5" drive bay can hold SATA-based storage drives up to 9.5mm high.
Once a drive is mounted, you will need to install an operating system such as Windows 10, which is sold separately. On the exterior, the NUC comes with a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to SD, SDHC, and SDXC memory cards.
Intel has equipped the NUC6CAYH with an HDMI 2.0 port along with an Intel HD Graphics 500 chipset to deliver up to 4K visuals to your TV or monitor. For supporting older monitors, it has a VGA port. To complete the multimedia experience, 7.1-channel surround sound is provided through its HDMI port, optical port, and combo audio jack.
Aside from multimedia, the NUC6CAYH provides four USB 3.0 ports, letting the system access printers, keyboards, external storage drives, and other useful peripherals. Additionally, one of the USB 3.0 ports can charge a battery-powered device while the system is turned off. If you need more USB ports, there's a USB 2.0 header to support an optional adapter with two USB 2.0 ports.
Other notable connections include a Gigabit Ethernet port as well as 802.11ac Wi-Fi for accessing the Internet wired or wirelessly. Moreover, Bluetooth 4.2 is on board for wireless connections to headsets, speakers, and other Bluetooth-enabled devices. For powering the NUC, Intel includes an external 65W wall-mountable power adapter.
Performance |
|
|
Processor |
Intel Celeron J3455 Quad-Core |
|
Base Clock Speed |
1.5 GHz |
|
Max Boost Speed |
2.3 GHz |
|
L3 Cache |
2 MB |
|
Chipset |
Not Specified by Manufacturer |
|
Total Installed Memory |
None |
|
Maximum Memory Capacity |
8 GB |
|
Memory Type |
DDR3L SDRAM |
|
Memory Speed |
1866 MHz |
|
Available Memory Slots |
2 |
|
Memory Slot Type |
204-Pin SO-DIMM |
|
Graphics Type |
Integrated |
|
Graphics Card |
Intel HD Graphics 500 |
Drives |
|
|
Hard Drive |
None |
|
Optical Drive |
None |
|
Drive Expansion |
1 x 2.5" (Internal) |
|
PCI Expansion |
None |
Inputs / Outputs |
|
|
Ports |
4 x USB 3.0 Type-A |
|
Display |
1 x HDMI 2.0 |
|
Audio |
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack |
|
Flash Media Slot |
1x SDXC |
Communications |
|
|
Network |
1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) |
|
Modem |
None |
|
Wi-Fi |
802.11ac; Dual-Band |
|
Bluetooth |
Bluetooth 4.2 |
|
Webcam |
None |
Keyboard & Mouse |
|
|
Keyboard |
None |
|
Mouse |
None |
General |
|
|
Operating System |
None |
|
Power Supply |
65 W |
|
Dimensions (W x H x D) |
4.5 x 4.4 x 2.0" / 114.3 x 111.8 x 50.8 mm |
|
Weight |
Not Specified by Manufacturer |
| Производитель | Intel |
|---|---|
| Оперативная память | - |
| Объем диска | - |
| Адаптер / блок питания | N/A |
| WiFi | 802.11 b/g/n |
| Bluetooth | Нет |
| 3D | Hardware 3D graphics acceleration |
| 3G | Support external 3G dongle |
| Поддерживаемые языки | Multilingual |
| Формат декодера | - |
| Медиа формат | - |
| Аудио формат | - |
| Формат фотографий | - |
| Цвет | Черный |
