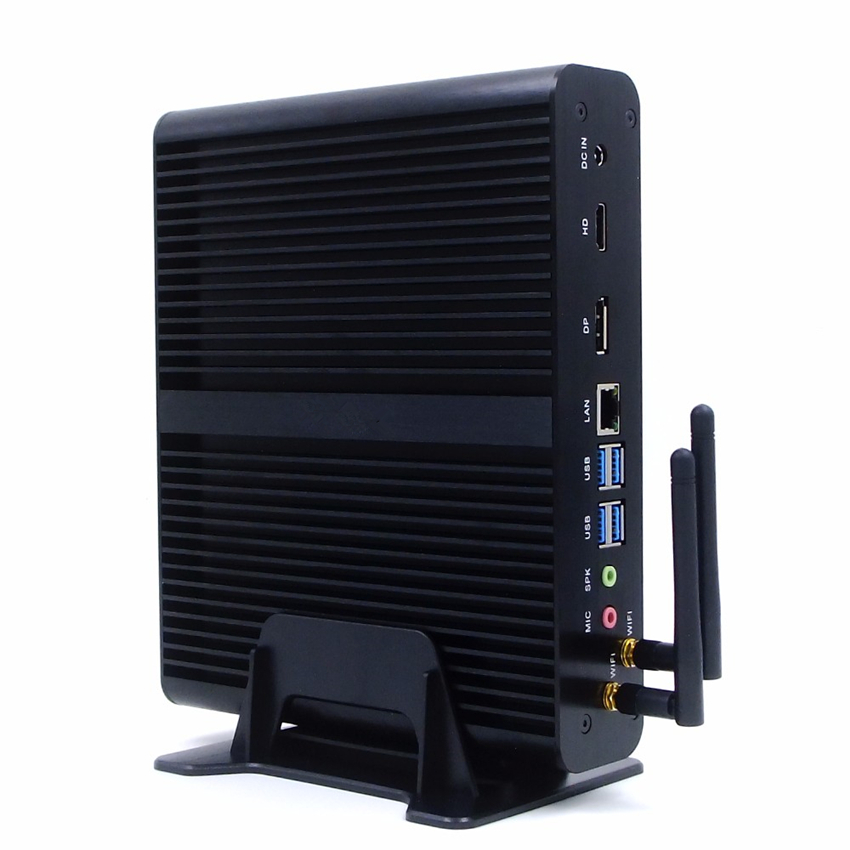

Industrial fanless mini PC Nettop Computer HTPC V7 Intel Core™ i7-10510 DDR4 mSATA HDMI DP
- Latest powerful processor Intel 10th Gen and 2xSODIMM DDR4 memory slots up to 64GB stronger performance and give you a smooth experience.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 15W, save much energy and eco-friendly.

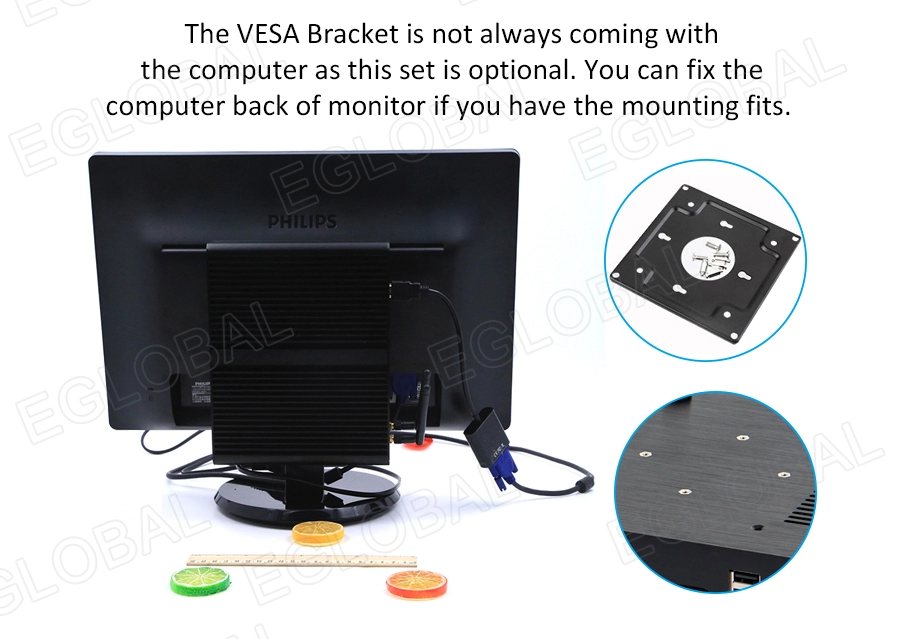

- Can stand up by free bracket or can be mounted back of monitor or wall.
- Can install M.2 SSD+MSATA SSD+2.5” SATA HDD together.
- Support DP + HDMI dual display output synchronously.
В наличии
SKU
V7-10510U
Так же низко как
21 130,98 ₴
Industrial fanless mini PC Nettop Computer HTPC V7 Intel Core™ i7-10510 DDR4 mSATA HDMI DP is available to buy in increments of 1
Specifications:
| Basic Information: | |
| CPU | Onboard Intel Comet Lake Intel Core i7 10510U 1.8GHz up to 4.90GHz Quad Cores 8 Threads |
| TDP | 15W |
| Motherboard | 170 x 170mm customized size |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | Intel Comet Lake |
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB DDR4-2666, LPDDR3-2133 |
| OS | Windows 10/Linux |
| PXE | YES |
| Audio | ALC897 chip, 7.1 channel sound Intel Lynx Point-LP HDA |
| Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel® UHD Graphics |
| Wi-Fi: | |
| Module | 1 x mini-PCIE port for Wi-Fi module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment: | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 19V/3~5A |
| Operating Temperature | 0/70 Centigrade |
| Storage Temperature | -20/+80 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Input/output port： | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 1 x LED |
| USB |
|
| Display | 1 x DP, 1 x HDMI |
| LAN | 1 x RJ45 Giga LAN |
| Audio | 1 x MIC, 1 x SPK |
| Storage: | |
| MSATA |
|
| SATA | 2 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Product Dimension & Details: | |
| Size | 210*170*45mm |
| Weight | Net 1.8kg, Gross 2.7kg |
| Shell | Black color aluminum alloy |
| Cooling Mode | Fanless |
| Functions | Calls on function automatically, RTC, AWAL |
| Package Content： | |
| Standard |
|
| Optional |
|
These options add extra cost
- USB Infrared remote (can turn power off but not turn on)
- 300M WiFi uprade to 5GHz AC WiFi & Bluetooth
- Bluetooth 4.0 USB Dongle
- External USB DVD-ROM
- External USB Bluray DVD-ROM
- USB 2.4GHz Air Keyboard& Mouse
- Genuine OEM windows license sticker
- 500GB 2.5'' HDD, 1TB 2.5'' HDD, 2TB 2.5'' HDD
- 3G Module, 4G Module
| Производитель | Eglobal | ||||||
|---|---|---|---|---|---|---|---|
| Вес | 1.800000 | ||||||
| CPU | Intel Core i7-10510U 1.8GHz 4 Cores 8 Threads | ||||||
| Чипсет | Intel Comet Lake | ||||||
| Graphics Card | Intel UHD Graphics (Comet Lake-U GT2) | ||||||
| HDD | SSD SATA 2.5", SSD mSATA, M.2 SATA | ||||||
| Тип подключения | Беспроводный + проводный | ||||||
| Bluetooth | Есть | ||||||
| Интерфейсы подключения | USB | ||||||
| I/O |
|
||||||
| Тип батареи | No Battery | ||||||
| ОС | Windows 7/8/10, Linux | ||||||
| Поддерживаемые языки | Multilanguage | ||||||
| Адаптер / блок питания | DC 19V/5A | ||||||
| Цвет | Черный | ||||||
| Материал | Металл | ||||||
| Размер | 170*170*45mm | ||||||
| Комплектация |
|
||||||
| Carton Meas. | 330*270*400mm | ||||||
| Box Size | 330*270*80mm |
