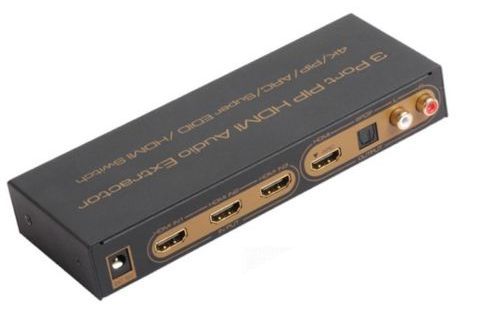

The device is one 3PORT HDMI Switcher that can do switch any one of the three input HD source to one HD Display, it supports the feature of PIP, ARC, 4K, 3D and also it can do audio extract by the Toslink port and LR port.
The device is one 3 x port HDMI Switcher that can do switch any one of the three input HD source to one HD Display, it supports the feature of PIP, ARC, 4K, 3D and also it can do audio extract by the Toslink port and LR port.
By the ARC feature of the device, you can return your TV audio back to the AV receiver. By the PIP feature, it can choose the input source by check the small window picture at big display side.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
3 x HDMI input and 1 x HDMI output can extract the Input HDMI Audio Signal
Supports 1 x SPDIF optical digital audio output and 2 channel RCA analog audio output
Any input HD Source can do audio extract by the SPDIF or L/R audio output port.
HDMI supports Full HD, 3D and 4K*2K video
Supports 15 built-in EDID mode, can be used flexibly
Support EDID save for each input source channel, to achieve fast change
Supports ARC ,TV audio will return and out by the Optical Port
Supports HDMI audio separation, can output by optical and RCA at the same time
Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
Support PIP function: have one main picture and two small pictures, it can do switch of input sources by press button or remote.
LED indication: when source or sink is working, LED related will go bright.
Support IR Remote Control and Push Button at device control.
Led Status Light allows the user to know the working status easily.
Power-off memory
No loss of quality
Need DC 5V/1A power supply

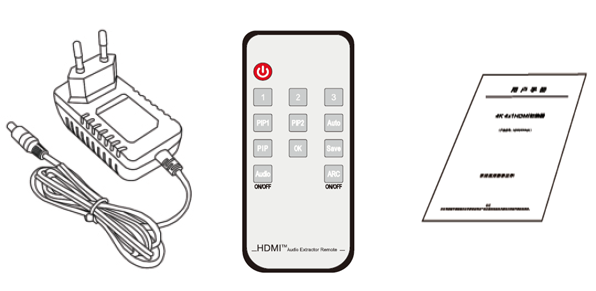

Package Contents:
5V power adapter - 1pcs
User manual - 1pcs
Remote - 1pcs

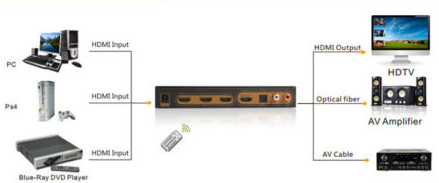

Physical Connection Showing Picture:
Figure 1.0 Front Panel Showing Picture
Auto: The Auto Detect Led Light for Input Sources
Audio: HDMI Audio Extract ON/OFF Led Status Light
ARC : ARC status indicator
LED On: ARC turn on, then output TV audio by optical port.
LED off: ARC turn off, then output HDMI audio by optical and RCA ports.
OUT: HDMI output led status light
1-3：HDMI input led status light
IR: IR Receiver
EDID Select: Built-in EDID mode selection switch (Used in conjunction with the "SAVE" key)
