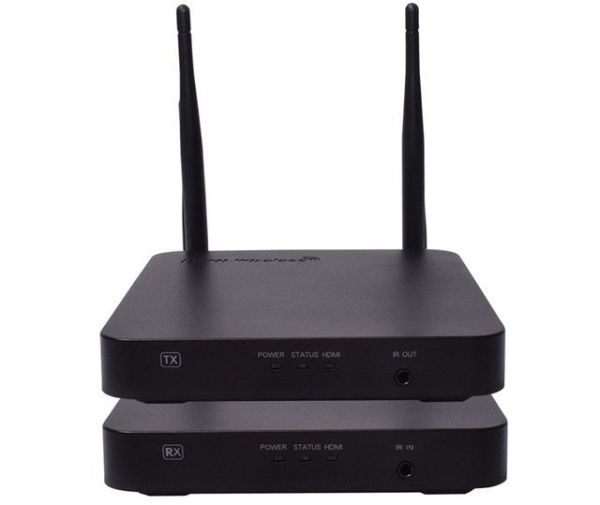

HDMI Extender Wireless 10

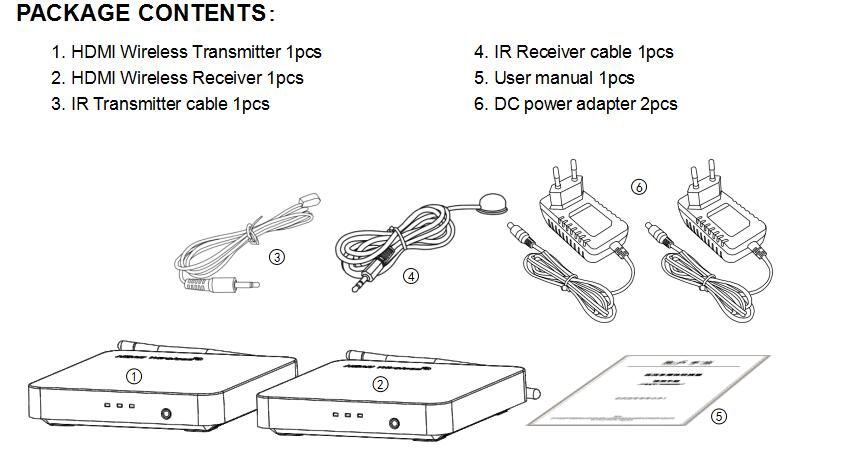

Features:

• Contains a transmitter (TX) and a receiver (RX). The HDMI signal over wireless transmission from the transmitter to the receiver
• The TX support one HDMI loop output, for local screen monitor
• Support HDMI resolution: 480i/576i~1080P@50/60Hz and SVGA~WUXGA
• Digital 2.4G & 5GHz dual frequency wireless A/V transmission, high transmission rate and strong anti-interference capability
• Using an external dual - gain antennas. Full HD 1080p transmits up to 100 meters wirelessly in open space.( May be affected by the use environment)
• Extends infrared remote to control source device from display side
• Support OSD, for informed of device status
• Simple Plug and Play. Full hardware design, no software installation required
• Support Web Configuration Interface, Simple and easy to use

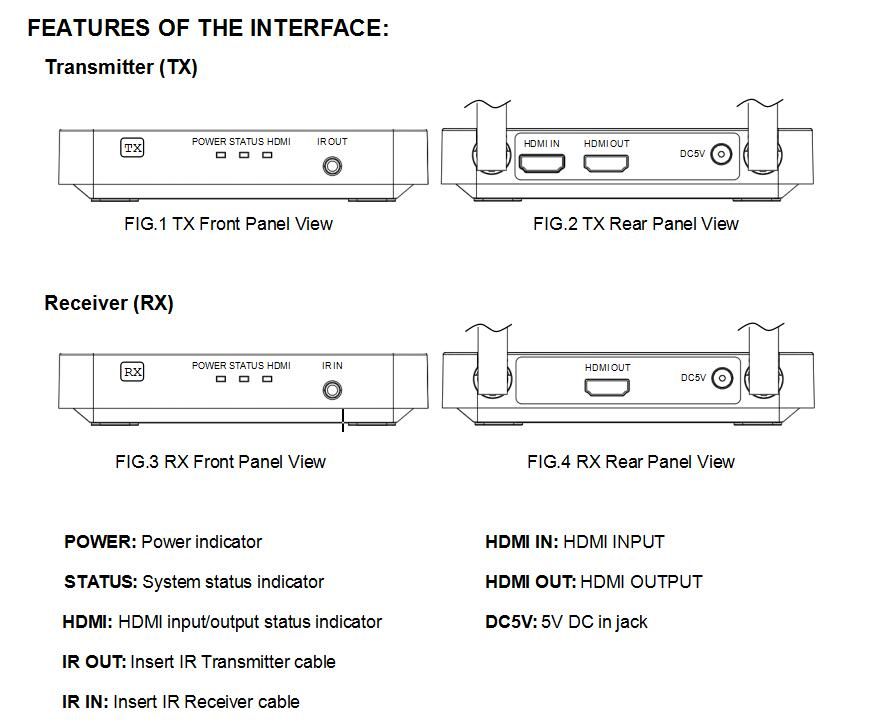

Features of the Interface:

Operationg and Connection:

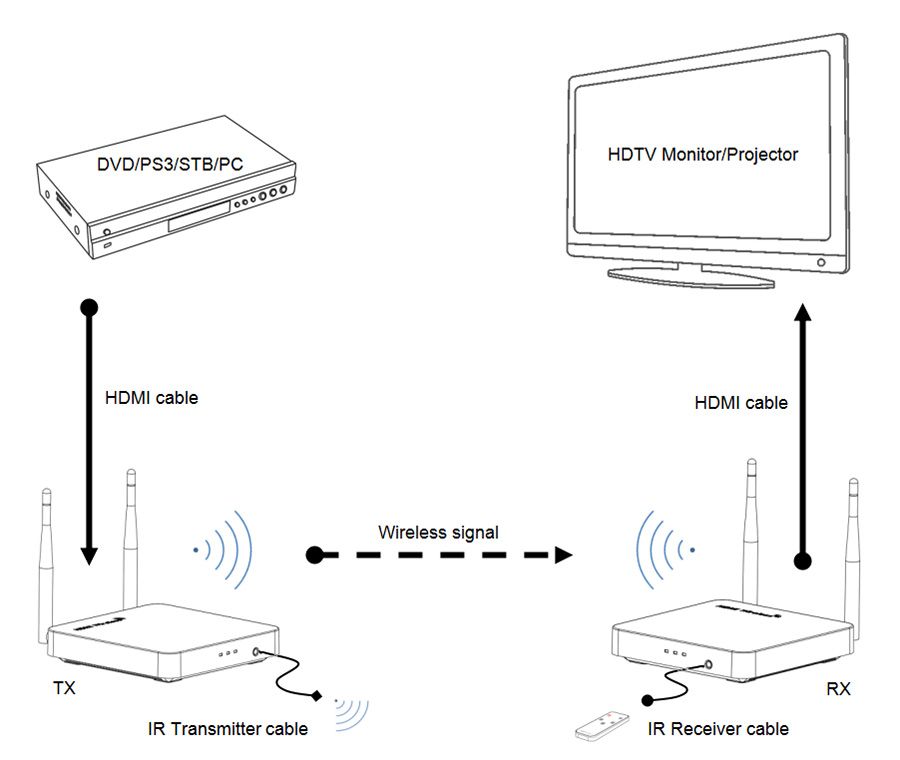

1. Connect one HDMI cable from the DVD/BD player into the HDMI input port of the HDMI wireless TX.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port of the HDMI wireless RX.
3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device.
4. Connect IR Receiver cable to the HDMI wireless RX.
5. Connect 5V power supplies to the TX&RX, and inserted into the power socket.

Web settings:

To prevent the interference caused by the same frequency device, the Wireless HDMI Extender support to set up the working frequency, transmit channel and SSID by the WEB. For safety, the user should change the SSDI and the password at the first log in. Pls follow the below steps:

• Connect 5V power supplies to the TX&RX, and inserted into the power socket.
• Turn on the WLAN of the mobile phone / PC，search and connect SSID：HDMI_Wireless, Enter the default password: 00000000.
• Modify the IP address type of the mobile phone / PC to static / fixed, and the IP must be set in 192.168.1. xxx address segment range, e.g. 192.168.1.100.

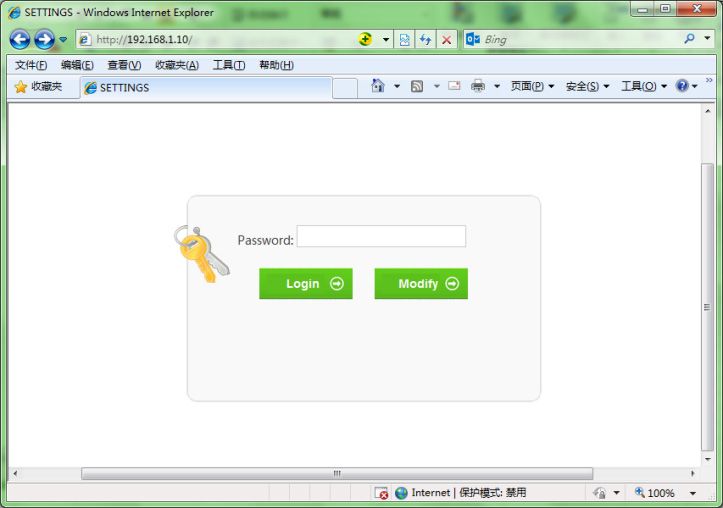

• Open the IE browser and enter 192.168.1.10 in the address bar, click “Enter”.

• Enter the default login password: admin, click “Login” open the Settings Interface. If you want to modify the login password, please click on the " Modify ", after modified click "save" to save and exit. Restore factory settings when click "reset".
• If you forgot the password, you can restore factory setting. The steps as below:

First Connect the power adaptor to the Wireless Extender, second use one needle to insert the port of IR IN/OUT to press the Reset button; If the Status and the HDMI Status Led Light go flash for three times ,it means the Reset action is finished successfully.

Note: You have to do reset to sender and receive both first, then you can connect the Sender and receiver again.

Specifications:

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machines not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
