Fanless Industrial Mini C

SKU
G8-10510U
44 916,35 ₴
В наличии
  • Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade  field, work as long as 24 hours.
  • High-end Industrial PC less than 1% defective rate, super long lifetime.
  • 2xIntel i201/i211 Gigabit RJ45 LANs, 6xDB9 COM, 4xCOM support RS422/RS485, PS/2, GPIO and LPT - rich  interfaces for different equipments.
  • One embedded SIM card slot onboard for 3G/4G wireless module.
  • Support VGA + HDMI dual display output synchronously.
  • Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
Fanless Industrial Mini Computer G8 Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G is available to buy in increments of 1

Hightlights

  • Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade  field, work as long as 24 hours.
  • High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.
  • 2xIntel i201/i211 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO and LPT - rich  interfaces for different equipments.
  • One embedded SIM card salot onboard for 3G/4G wireless module.
  • Support VGA + HDMI dual display output synchronously.
  • Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G
Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

Specification:

Basic Information

CPU (optional): Intel Core i5-6360U (4M Cache, 2 core 4 threads, 2.00 GHz up to 3.10 GHz, TDP 15W, Intel® Iris® Graphics 540)
Intel Core i7-6567U (4M Cache, 2 core 4 threads, 3.30 GHz up to 3.60 GHz, TDP 28W, Intel® Iris® Graphics 550)
Intel Core i5-7267U (4M Cache, 2 core 4 threads, 3.10 GHz up to 3.50 GHz, TDP 28W, Intel® Iris® Graphics 650)
Intel Core i5-8250U (6M Cache 4 core 8 threads, 1.60 GHz up to 3.40 GHz, TDP 15W, Intel® UHD Graphics 620)
Intel Core i5-10210U (6M Cache, 4 core 8 threads, 1.60 GHz up to 4.20 GHz, TDP 15W, Intel® UHD Graphics)
Intel Core i7-10510U (8M Cache, 4 core 8 threads, 1.80 GHz up to 4.90 GHz, TDP 15W, Intel® UHD Graphics)
TDP Refer to CPU
BIOS American Megatrends Inc.
Chipset Refer to CPU
Memory 2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB
OS Windows 7/Windows 8/Windows 10/Linux, WES7/10
PXE YES
Audio Intel High Definition Audio Controller
Network Intel(R) i210/i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video Refer to CPU

Input/output port

Switch 1 x Power On/Off Switch
Power 1 x 3pin phoenix terminal power block DC In, support 9~36V
Button 1 x ATX/AT quick switch
USB 4 x USB3.0, 2 x USB2.0
PS/2 1 x PS/2(keyboard and mouse 2 in 1)
Display 1 x VGA, 1 x HDMI
LAN 2 x Intel GbE RJ45 LAN
COM 6 x DB9 COM(4xCOM support RS422/RS485)
GPIO 1 x GPIO( 7pin input, 7pin output)
LPT 1 x LPT
Audio 1 x MIC, 1 x SPK
SIM 1 x embedded SIM card slot onboard
Others 1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input

Storage


MSATA 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1 x M.2 slot for NVME 2280 SSD, support 6Gb/s
SATA 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi


Module 1 x mini PCIE-half port for Wi-Fi/Bluetooth module
1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module
1 x Extended IO, support LPC, USB, PCIE
Antenna 2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input AC 100-240V/50-60Hz
Output DC +9V~+36V, recommend 12V/5A
Operating Temperature -20/+60 Centigrade
Storage Temperature -30/+70 Centigrade
Storage Humidity 10%~90% @30 Centigrade (non-condensing)

Product Dimension & Details

Size 249*150*86mm
Weight NW 2.2KG, GW 3.5KG
Shell Black color aluminum alloy (any customized color for bulk order)
Mounting 4 mounting holes on case
Cooling Mode Fanless
Functions
  • Watchdog,
  • One key reset,
  • AWAL,
  • RTC,
  • WOL(ATX mode)

Package Content

Standard
  • 1xMini PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag
  • 2xWi-Fi antennas,
  • 1xHDMI cable
Optional
  • 1xUser Manual,
  • 1xLong Screws Bag

EGLOBAL Industrial Mini Computer Wide application / stable operation / lower power consumption 6 DB9COM 4 COM RS422/RS485 2*lntel LAN Gigabit Ethernet Passive Cooling Dustproof Design 4G Module Expanded Windows & Linux 24/7 Working One key Reset 14pin GPIO, LPT

OEM Service | Making your logo into the booting interface for free, please leave message on your order if needed.

Making your logo on the product case by laser printing for free, please leave message on your order if needed.

Onboard Intel 6th/7th/8th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk) Onboard Intel SKYLAKE 14nm CPU Intel Core i5-6360U2.0GHz Max 3.1GHz Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540. Onboard Intel SKYLAKE 14nm CPU Intel Core i7-6567U3.3GHz Max 3.6GHz Dual Cores Four Threads 4MB cacheTDP 28W Intel® Iris® Graphics 550.  Intel KABYLAKE 14nm CPU Intel Core i5-8250U1.6GHz Max 3.4GHz Quad Core Eight Threads 6MBcache TDP 15W Intel® UHD Graphics 620. SHOW

Microsoft Office

PS Ai f d Industrial Mini Computer

Aluminum Alloy Heat Dissipation

Faster, more stable internet connections WiFi ensures stronger signal and faster speed, give you fast and stable internet connections, WiFi service cover all your house area. Built-in WiFi

4G WiFi | 4G module SIM Card

(LTE) Connected  When you’re not connected to another kind of network, we’ll automatically use cellular data from your data plan.  Let Windows keep me connected Network & Internet settings  Change settings, such as making a connection metered.

Any colors can be customized for bulk order

Operation Systems | Support Windows 7/8/10 & Linux OS and more

Product Dimension | 249MM x 150MM x 86MM

Rich Interfaces 4*RS232/ 422/485 COM 1* ATX/AT quick switch 2*USB 2.0 1*PS/2 Audio Out Audio In 1*LPT 1*Reset 1*On/Off ! Switch rcMOS t clear button 1*2Pin phoenix terminal power n supply input GPIO 2*DB9 COM 2*lntel Giga Lan VGA Port | for Monitor 4*USB3.0 2*Wi-Fi HD Port for TV/Monitor 1 x 3pin phoenix terminal power block DC In

6 x DB9 COM, COM1-4 can change to RS232/422/485 from BIOS [Advanced]  Match Dog Timer	[Disabled]  COM2	Mode	[RS232]  COM3	Mode	[RS232]  COM4	Mode	[RS232]  GP01	Ouput	Value	[Low]  GP02	Ouput	Value	[Low]  GP03	Ouput	Value	[Low]  GP04 Ouput Value  GP05 Ouput Value  GP06 Ouput Value  GP07 Ouput Value

COM Interface Industrial instruments/ machine tools Acquisition card module Sensor/ mouse Modulation Medical control equipment Standard RS-232 (DB9 pin) Receipt  printer POS  machine Bar code scanner Access control system Other

Dual LAN | 2*lntel(R) i210/i211 10/100/1000Mbps LAN ports & Mini PCI-E WiFi

optional long screws

PC can he mounted to wall. Just need 4 screws

Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

WATCH DOG | It can prevent the program from entering the infinite loop due to interference, constantly monitoring the running time of the program. Once the program running time exceeds the set cycle time, it is conaidered that the program is in an infinite loop, and then the program is forced to return to the entrancewhere the error handler has been arranged.The system returns to normal operation.

Hard Disk | Suport 2.5” SATA HDD/SSD + MSATA SSD + M.2 NVME 2280 SSD

Inside of Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

HDD 2.5” SATA Hard Drive Disk, SSD 2.5” SATA Solid State Drive, SSD M.2 Solid State Drive, SSD MSATA Solid State Drive

Dual Display: HD+VGA dual display output, enable to connect two monitors simultaneously VGA HDMI

4K UHD WiFi USB 3.0 SuperSpeed Bluetooth

LPT Interface: The Rugged Mini PC G8 is with a LPT(Line Print Terminal) for a parallel port connection to printers, scanners, video cameras, or other devices.

Application: Industrial premises Entertainment Commercial organization Financial Institutions Surveillance system Medical equipment Digital signage Vending machines Smart robot

Wake-On-LAN Turn on your mini PC from anywhere in the world by a network message. Preboot Execution Environment Intall operating system on a series of PXE-enabled Mini PC as clients through Internet. PXE Booting PXE Booting PXE Booting PXE Booting Client 1 Client 2 Client 3 Client 4

Digital Signage Auto Power On for building scheduled tasks and events on the Mini PC. PXE for assembling software on the Mini PC from a network. WOL for awakening the Mini PC remotely from a LAN port. RTC(Real Time Clock) provides an accurate date and time, in addition to allowing a computer to regulate the timing and speed of all its functions

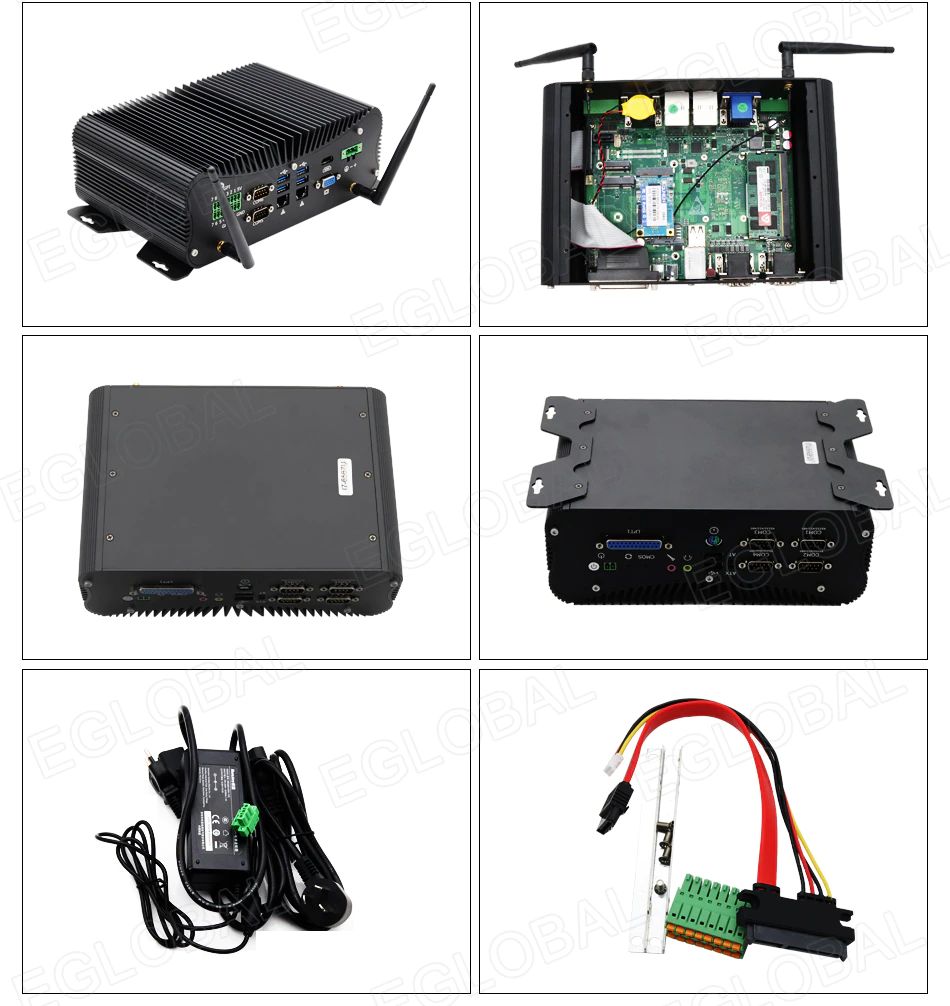

Product Picture of Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

Product Picture Fanless Industrial Mini Computer G8 z Intel i7-10510U DDR4, SSD, M.2, RS232/RS485/RS422, GPIO, DC 9V~36V, 4G

Accessories Mini Computer Picture of outer packing for reference only is subjected to change without notice. black white Dual external wifi antennas color delivery as per the product case Power adapter and Power cable HDMI cable optional Long screws SATA cable CD driver

ПроизводительEglobal
EAN штрихкод2437452614277
CPUIntel Core i7-10510U
Graphics CardIntel® UHD Graphics
HDDSSD SATA 2.5", SSD mSATA, M.2 NVMe
Тип подключенияБеспроводный + проводный
BluetoothЕсть
Интерфейсы подключенияBluetooth
I/O
Switch 1 x Power On/Off Switch
Power 1 x 3pin phoenix terminal power block DC In, support 9~36V
Button 1 x ATX/AT quick switch
USB 4 x USB3.0, 2 x USB2.0
PS/2 1 x PS/2(keyboard and mouse 2 in 1)
Display 1 x VGA, 1 x HDMI
LAN 2 x Intel GbE RJ45 LAN
COM 6 x DB9 COM(4xCOM support RS422/RS485)
GPIO 1 x GPIO( 7pin input, 7pin output)
LPT 1 x LPT
Audio 1 x MIC, 1 x SPK
SIM 1 x embedded SIM card slot onboard
Others 1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input
Тип батареиNo
ОСWindows 10, Linux
Поддерживаемые языкиMultilanguage
Адаптер / блок питанияDC 12V/5A
Комплектация
  • 1xMini PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag,
  • 2xWi-Fi antennas,
  • 1xHDMI cable,
  • 1xUser Manual,
ЦветЧерный
МатериалМеталл
Размер249*150*86 mm
Вес2.200000
