Coverter HDMI to HDMI dig

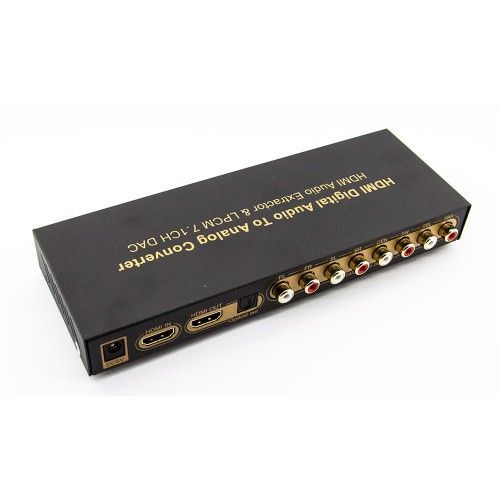

This HDMI to 7.1 channel audio converter can help you to synchronize separate the HDMI signal to the SPDIF optical digital audio output, while the LPCM digital audio stream after an internal high-quality multi-channel DAC converts analog audio output to your amp.

Support 2CH / 5.1CH / 7.1CH other LPCM digital audio signal is converted. This is work for your DVD player, Blu-ray machines, network players, set-top boxes, PS4, PS3, Xboxone, notebook PC and many other entertainment devices use docking.

The products are designed to make your A/V device use more convenient, comfortable, productive and cost-efficient.

The HDMI Converter allows you to extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or analog multi-channel output. This product supports 2CH, 5.1CH, 7.1CH LPCM digital audio format convert. It is one perfect audio converter for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.

FEATURES:

• 1 x HDMI input and 1 x HDMI output,can sync separation HDMI audio signal.
• Supports 1 x SPDIF optical digital audio output, multi-channel RCA analog audio output
• Supports 12-bit Deep Color Full HD, 3D and 4K*2K video
• Support CEC
• Support multi-channel LPCM digital audio to analog output, up to 7.1 CH.
• Uses 24bit /192KHz DAC
• LPCM audio format indicator
• Supports 3 modes for audio output. You can switch among multi-channel, stereo (2CH) and mute.
• High tone quality, low noise
• DC5V power adapter

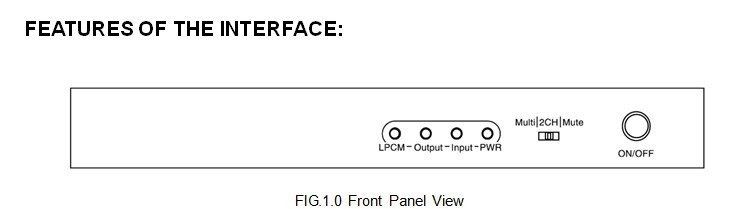

• LPCM LED:LPCM audio format indicator
• Input LED:HDMI input status indicator
• Output LED:HDMI output status indicator
• PWR LED:POWER ON/OFF indicator

SWITCH: Audio output mode switch

1. Multi: Multi-channel audio Mode. Switch to this mode for the HDMI source to output 5.1/7.1 LPCM audio per the built-in EDID. Then RCA output 5.1/7.1CH analog audio, Optical output 2 channel LPCM digital audio and HDMI output bypass. Note: Need support from source player and disc for multi-channel audio output.
2. 2 CH: 2 channel stereo mode. Switch to 2CH mode for the HDMI source to output LPCM 2 channels audio per the built-in EDID. Then RCA, Optical and HDMI output stereo audio.
3. Mute: Mute Mode. Then RCA, Optical no output, HDMI output bypass.

ON/OFF: Power ON/OFF switch

• DC5V: 5V DC in jack
• HDMI OUT: HDMI output port
• FL/FR: Front L/R analog output ports
• CEN:  Center analog output port
• SBL/SBR: Surround back L/R analog output
• HDMI IN: HDMI input port
• Optical out:SPDIF digital audio output
• SL/SR: Surround L/R analog output ports
• SW:   Sub woof analog output port

OPERATIONG AND CONNECTION:

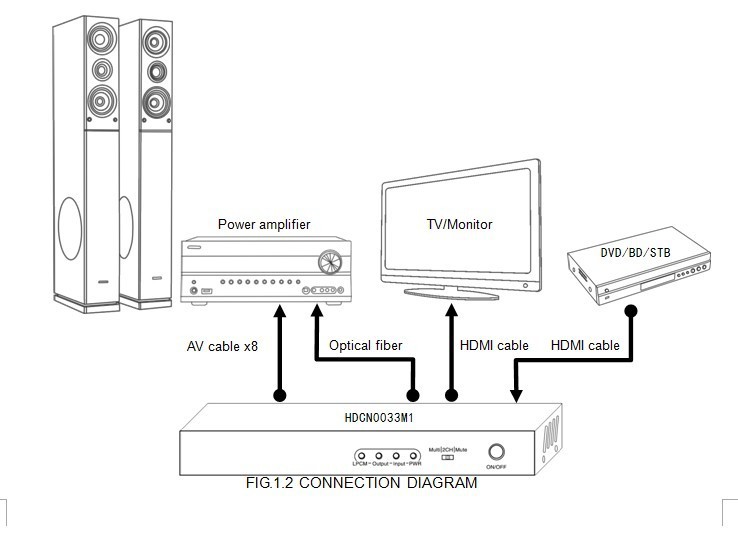

• Connect one HDMI cable from a DVD/Blu-ray player into the HDMI input port of converter.
• Connect one HDMI cable from TV/Monitor into the HDMI output port of converter.
• If you need a digital audio, connect one optical fiber from digital power amplifier into the SPDIF output port of converter.
• If you need an analog audio, Connect eight AV cables from analog power amplifier into the analog
• audio output ports of converter, the channel must correspond. If you want to connect to the TV or stereo power amplifier, you only need to connect the FL/FR 2 ports, and switch EDID mode in 2CH.
• Connect 5V power supply to the Converter and inserted into the power socket.

SPECIFICATIONS:

Notes:

• Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
• The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
• All parts will be free from the strong shake, hit, fall.
• Touching the power adaptor with the wet hands is prohibited.
• Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
• Pls turn the power off when the machines not used for long time.
• Pls do not open the cover and do not touch the inside parts.
• Pls use the original factory power adaptor.
